Audio Technica- COMB8CPB

CP Beam COMBINE8 Package

Manufacturer: Audio Technica
Category: Wireless Microphone Access.
SKU: COMB8CPB
Availability: Call
MSRP: $2,799.00
PRODUCT HIGHLIGHTS

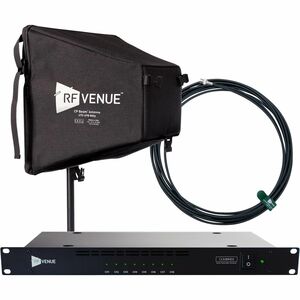

This is a complete system, engineered to work together to combine up to eight IEM transmitters of any brand into a single helical antenna. The CP Beam helical antenna steps up an IEM system's transmitting power by nearly eight times, focusing the signal directly on your performers and not scattering the signal where it isn't needed. This allows you to use the lowest possible setting of your transmitter's output power, which greatly reduces intermodulation interference to both your wireless mics and your IEMs. An extra benefit that improves RF signal and audio quality!

  • COMBINE8™ IEM Transmitter Antenna Combiner
  • Broadband UHF operation (470-608 MHz range)
  • Combines the signals of up to eight wireless in-ear monitor transmitters into one antenna
  • External power supply provides DC power to up to eight individual transmitters
  • Eight BNC inputs for IEM transmitter signals
  • Front-panel LED signal indicators for each input
  • Includes two AC cables, auxiliary power supply with 8 DC plugs, and eight BNC jumpers
  • Full rack width (1 RU)
  • CP Beam™Antenna
  • Lightweight, circularly polarized beam antenna (470-698 MHz)
  • Unique folding design allows antenna to be collapsed for storage and transport
  • Can be used with IEMs, wireless microphone systems, and other UHF communication devices
  • 63 x 70 degree beam angle
  • Provides up to 9 dB of antenna gain
  • RG8X25 25-Foot Coaxial Cable
  • Premium low-loss RG8X coaxial cable with BNC (male) connectors
  • Double-shielded (braid over foil) design
  • 25' (7.6 m)
SPECIFICATIONS
General Information
ManufacturerAudio-Technica U.S., Inc
Manufacturer Part NumberCOMB8CPB
Manufacturer Website Addresshttp://www.audio-technica.com
Brand NameRF Venue
Product NameCOMBINE8 CP Beam Bundle
Product TypeAntenna Kit
Technical Information
Recommended UsageMicrophone
Power Description
Power SourceAC
Input Current1.50 A
Input Voltage100 V AC
240 V AC
Physical Characteristics
Dimensions

RG8X25 25-Foot Coaxial Cable:

  • 25' (7.6 m)


Product Dimension:

  • 18.9 x 1.8 x 10.2" / 480 x 45 x 260 mm
Miscellaneous
Package Contents
  • 1 x COMBINE8 IEM transmitter antenna combiner
  • 1 x CP Beam antenna
  • 1 x RG8X25 25-foot low-loss coaxial cable
  • 2 x AC cables
  • auxiliary power supply
  • 8 x DC plugs
  • 8 x BNC jumpers
Warranty
Limited Warranty1 Year
Additional Warranty Information

Rf Venue One Year Warranty
