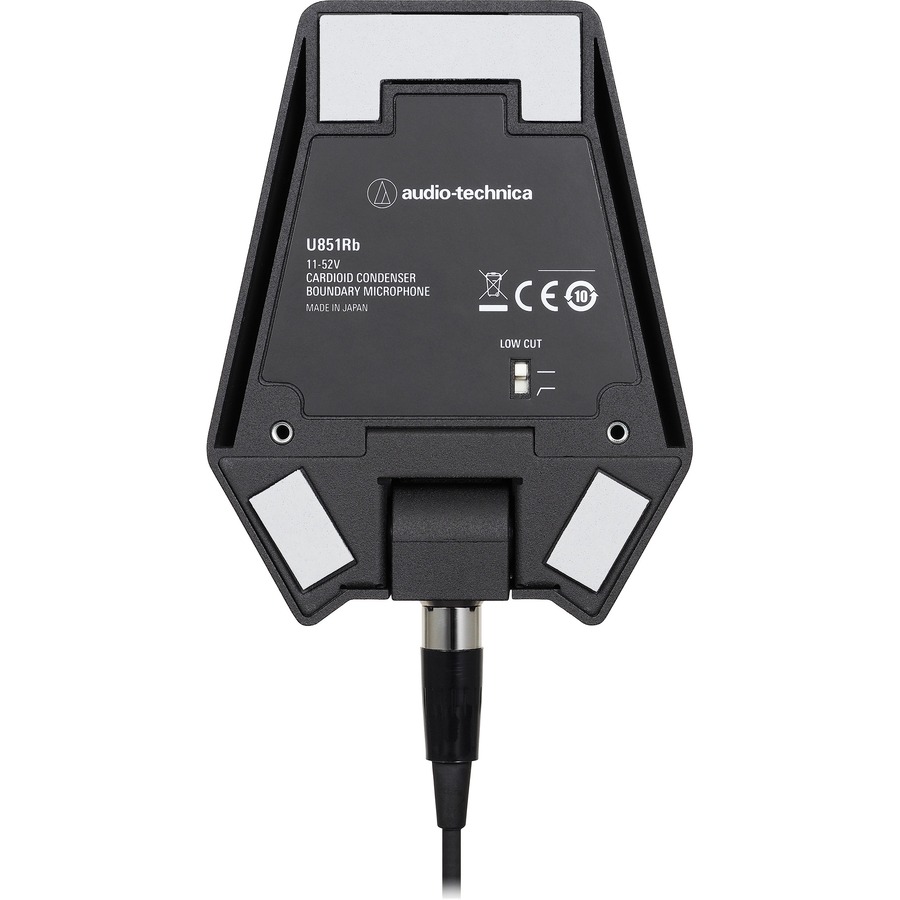

Audio Technica- U851RB

Cardioid condenser boundary microphone with integral power module, phant

Manufacturer: Audio Technica
Category: Wired Microphones
SKU: U851RB
Availability: Call
MSRP: $239.00
PRODUCT HIGHLIGHTS

The phantom-powered U851Rb cardioid condenser boundary microphone offers outstanding speech intelligibility and transparent sound quality for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations. The microphone is equipped with a PivotPoint® rotating output connector, UniSteep® filter and UniGuard® RFI-shielding technology. It accepts interchangeable condenser elements, available separately in hypercardioid and omnidirectional polar patterns. With a heavy die-cast case and silicon foam bottom pads to minimize coupling of surface vibration to the microphone, the U851Rb is equipped with self-contained electronics, eliminating the need for an external power module. Threaded inserts on the bottom of the microphone allow it to be mounted with screws for increased security.

Available in two colors: black (U851Rb) and white (U851RWb).
  • Cardioid condenser boundary microphone
  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
  • Superior off-axis rejection for maximum gain before feedback
  • PivotPoint® rotating output connector allows cable to exit from either the rear or the bottom of the microphone
  • Small-diameter UniPoint® element near boundary eliminates phase distortion and delivers clear, high-output performance
  • Available interchangeable elements permit angle of acceptance from 100° to 360°
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Self-contained electronics eliminate need for external power module
  • Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility
SPECIFICATIONS
General Information
ManufacturerAudio-Technica U.S., Inc
Manufacturer Part NumberU851RB
Manufacturer Website Addresshttp://www.audio-technica.com
Brand NameAudio-Technica
Product ModelU851Rb
Product NameU851Rb Cardioid Condenser Boundary Microphone
Product TypeMicrophone
Technical Information
Connectivity TechnologyWired
Cable Length24.93 ft
Minimum Frequency Response20 Hz
Maximum Frequency Response20 kHz
Microphone
Microphone TechnologyCondenser
Boundary
Polar PatternCardioid
Hyper-cardioid
Omni-directional
Microphone TypeSurface Mount
Microphone Sensitivity-34 dB
Interfaces/Ports
Host InterfaceTB3M
Miscellaneous
Package Contents
  • U851Rb Cardioid Condenser Boundary Microphone
  • Soft Protective Pouch
Warranty
Limited Warranty2 Year
