Draper- 139036

Access E, 220", HDTV, Matt White XT1000E, 110 V

Manufacturer: Draper
Category: Screens
SKU: 139036
Availability: Call
MSRP: $11,212.00
PRODUCT HIGHLIGHTS

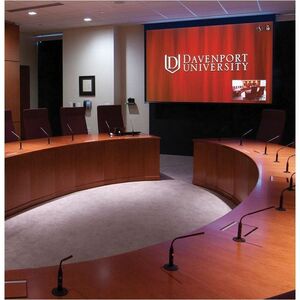

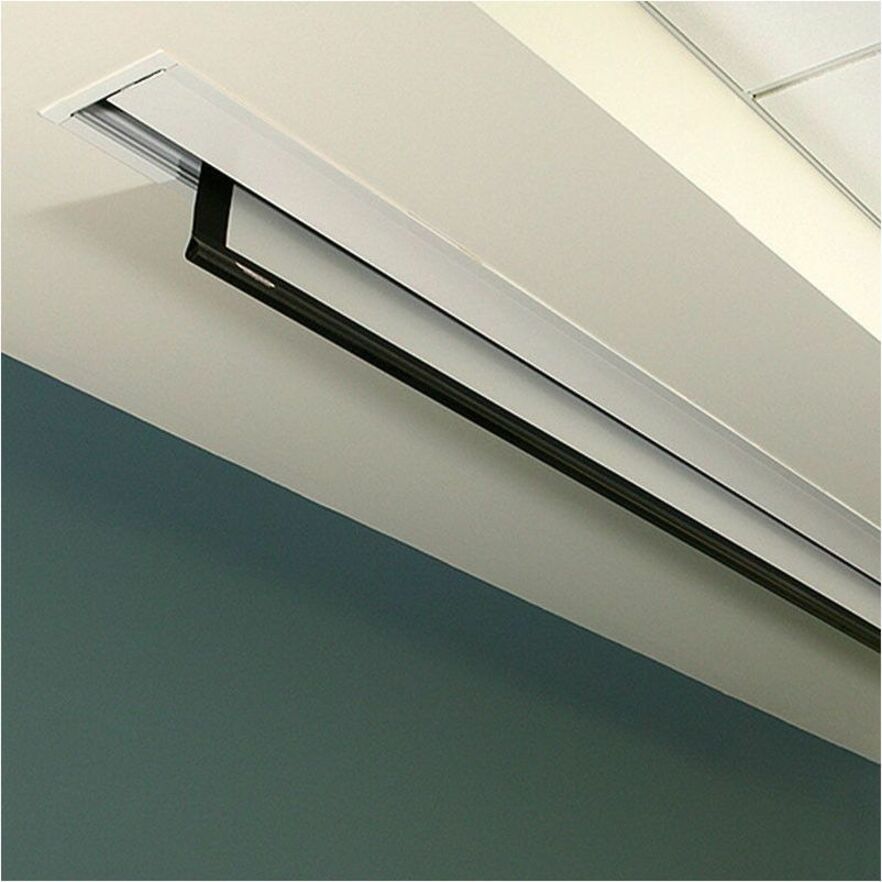

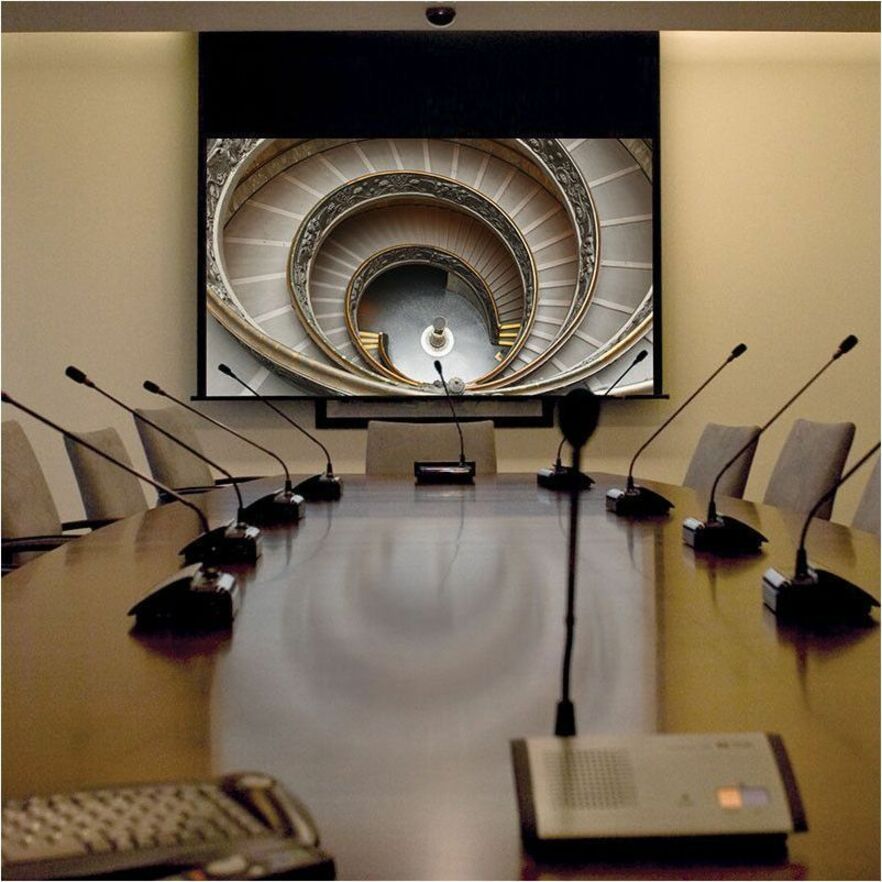

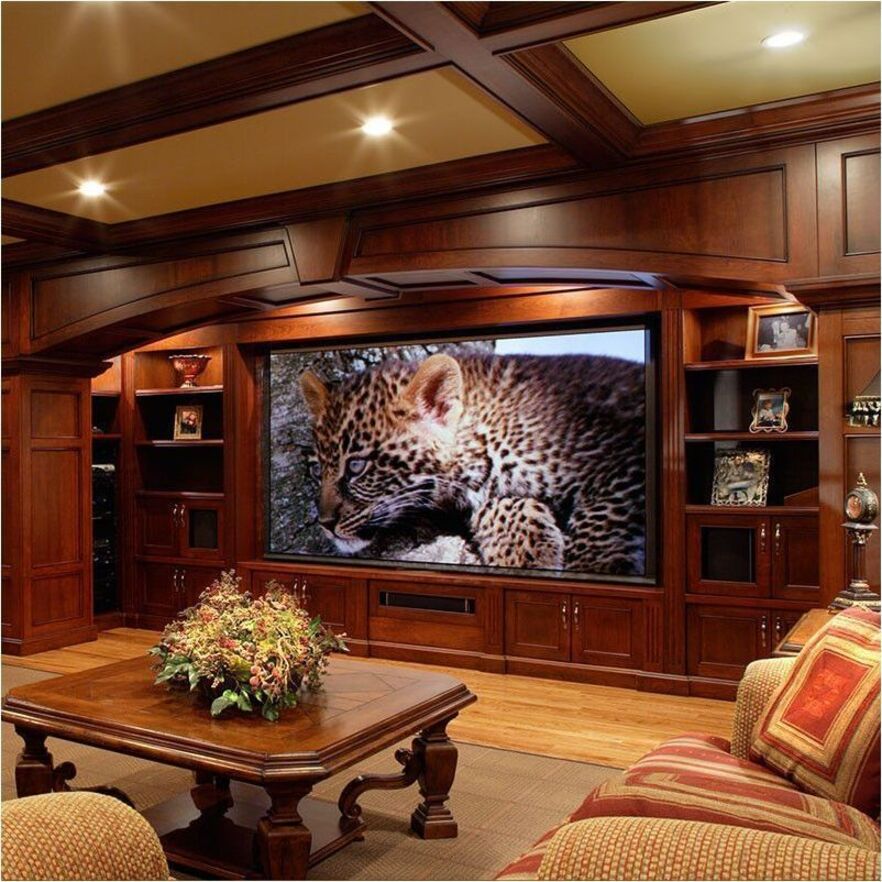

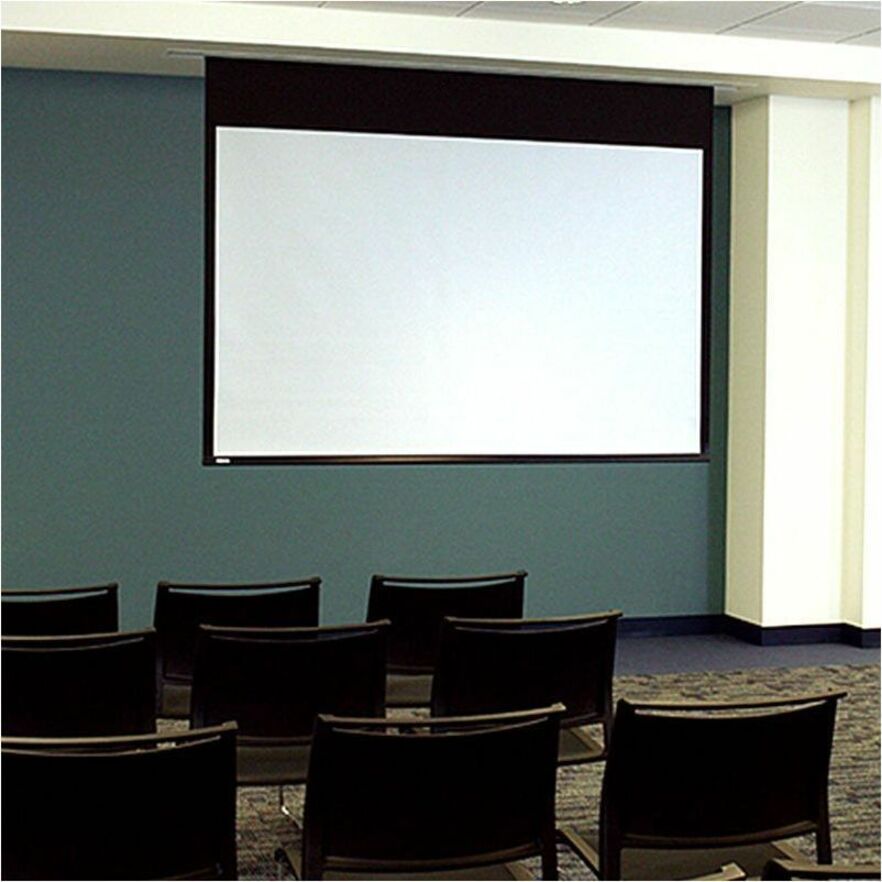

The ceiling-recessed Access E projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. Case includes a bottom access panel door for easy service and maintenance.

  • Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 16' (488 cm) wide, depending on surface selection.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.
  • Sliding brackets on top of the case allow for adjustments when mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom access panel door is detachable for easy service or maintenance.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • Low voltage, video interface or other controls can be built into housing for access from below ceiling.
SPECIFICATIONS
General Information
ManufacturerDraper, Inc
Manufacturer Part Number139036
Manufacturer Website Addresshttp://www.draperinc.com
Brand NameDraper
Product LineAccess E
Product NameAccess E Projection Screen
Product TypeProjection Screen
Technical Information
Diagonal Image Size220"
Screen Height106"
Screen Width188"
Screen FabricMatt White XT1000E
Aspect Ratio16:9
Projection FormatsHDTV
Screen Folding MechanismElectric
Physical Characteristics
Mount TypeRecessed/In-Ceiling Mount
Free Hanging
Miscellaneous
Package Contents
  • Access E Projection Screen
  • Bottom Access Panel Door
  • Trim Flange
  • Hoisting Brackets
  • 3-Position Switch
Environmentally FriendlyYes
Environmental CertificationGREENGUARD
GREENGUARD Gold
Warranty
Limited Warranty5 Year
