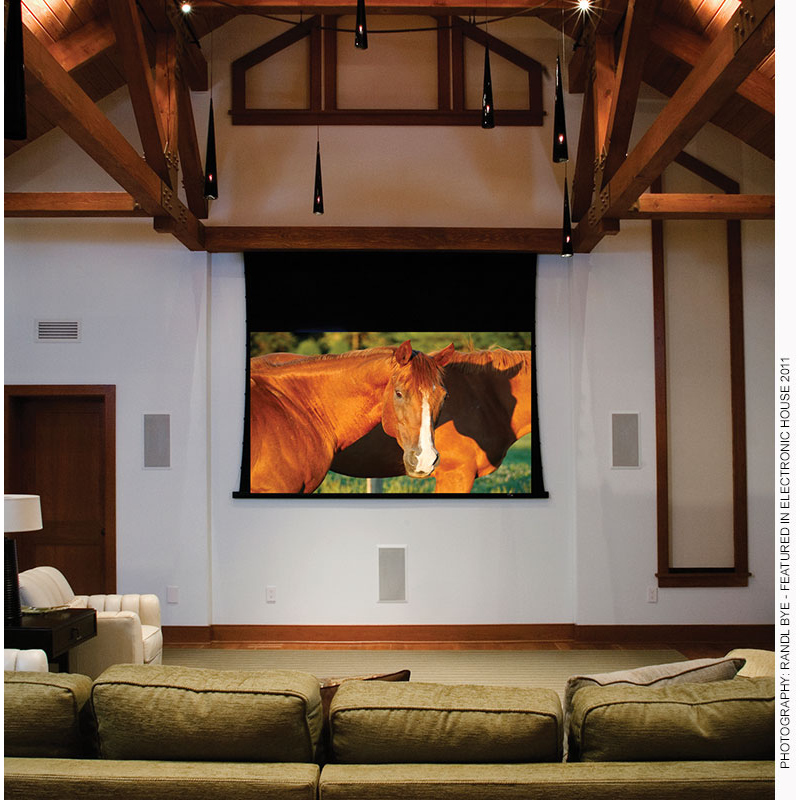

The choice for boardrooms, mid-sized training rooms, classrooms, or home theaters, Access V offers a premium electric projection screen for small- to medium-sized spaces. This tab-tensioned screen provides a perfectly flat viewing surface with better image quality. RF welded tabs create a more durable seal that eliminates separation and stickiness. Placement of the ceiling-recessed case during the initial phase of construction eliminates job site damage and allows for installation of the screen at a later time. The bottom closure panel provides access to all components for easier service and maintenance.
- Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
- Maximum image width up to 16' (488 cm) wide, depending on surface selection.
- The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
- Adjustable or removable hoisting brackets included for easy lifting during installation.
- Sliding brackets on top of the case allow for adjustments for mounting.
- Sliding brackets inside case accommodate different size screens.
- Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
- Quick-connect wiring allows for early installation of the case with the addition of the screen later.
- Low voltage, video interface or other controls can be built into housing for below ceiling access.
- Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
