Draper- 144006U

307" Diagonal 16:10XT 1000E Matt White

Manufacturer: Draper
Category: Screens
SKU: 144006U
Availability: Call
MSRP: $17,476.00
PRODUCT HIGHLIGHTS

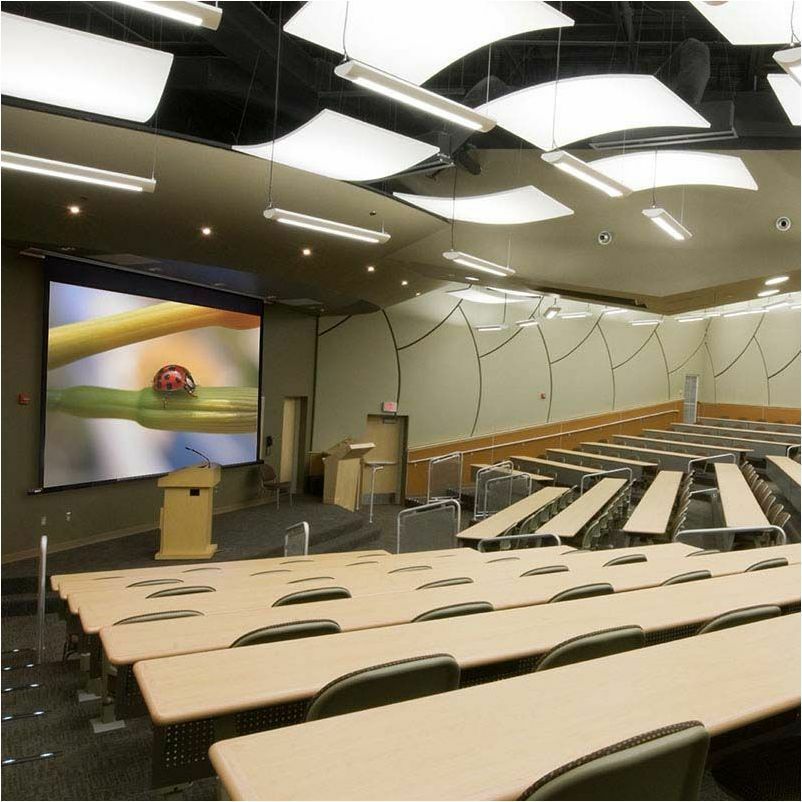

Major venues-conference centers, ballrooms, or university classrooms-benefit from the larger sizes available with the Access XL E electric projection screen. The fully automatic ceiling closure panel provides complete concealment when screen is retracted for a smooth, clean look. This free-hanging electric screen maintains flatness due to the weight of the screen and bottom dowel. A bottom access panel provides easier service and maintenance.

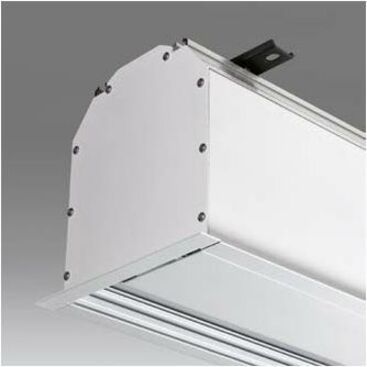

  • Case dimensions are 14-1/16" high x 11" deep (36 cm x 28 cm), includes trim flange. White case standard, black available upon request.
  • Built-in controls may increase case length. Mounting brackets may add to case dimensions.
  • Maximum image width up to 22' (671 cm) wide, depending on surface selection.

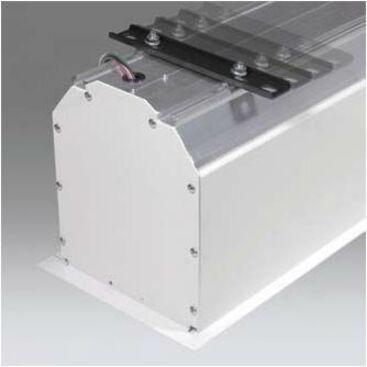

  • Sliding brackets on top of the case allow for adjustments for mounting. Sliding brackets inside case accommodate different size screens.
  • Black drop standard, depending on screen size. Extra drop above image area available upon request.
  • Independently motorized ceiling closure panel opens into the case.
  • Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.
  • Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • Low voltage video interface or other controls can be built into the housing for below ceiling access.
  • Custom sizes available.
SPECIFICATIONS
General Information
ManufacturerDraper, Inc
Manufacturer Part Number144006U
Manufacturer Website Addresshttp://www.draperinc.com
Brand NameDraper
Product LineUltimate Access XL E
Product NameUltimate Access XL E Electric Projection Screen
Product TypeProjection Screen
Technical Information
Diagonal Image Size307"
Screen Height162.5"
Screen Width260"
Screen FabricMatt White XT1000E
Aspect Ratio16:10
Screen Folding MechanismElectric
Physical Characteristics
Mount TypeCeiling Mount
Color FamilyWhite
Product ColorWhite
Miscellaneous
Package Contents
  • Ultimate Access XL E Electric Projection Screen
  • Trim Flange
  • Three-Position Switch (110 V)
Environmentally FriendlyYes
Environmental CertificationGREENGUARD
GREENGUARD Gold
Warranty
Limited Warranty5 Year
