Draper- 152103

Acumen XL E, 198", 16:10, Matt White XT1000E, 110 V

Manufacturer: Draper
Category: Screens
SKU: 152103
Availability: Call
MSRP: $7,338.00
PRODUCT HIGHLIGHTS

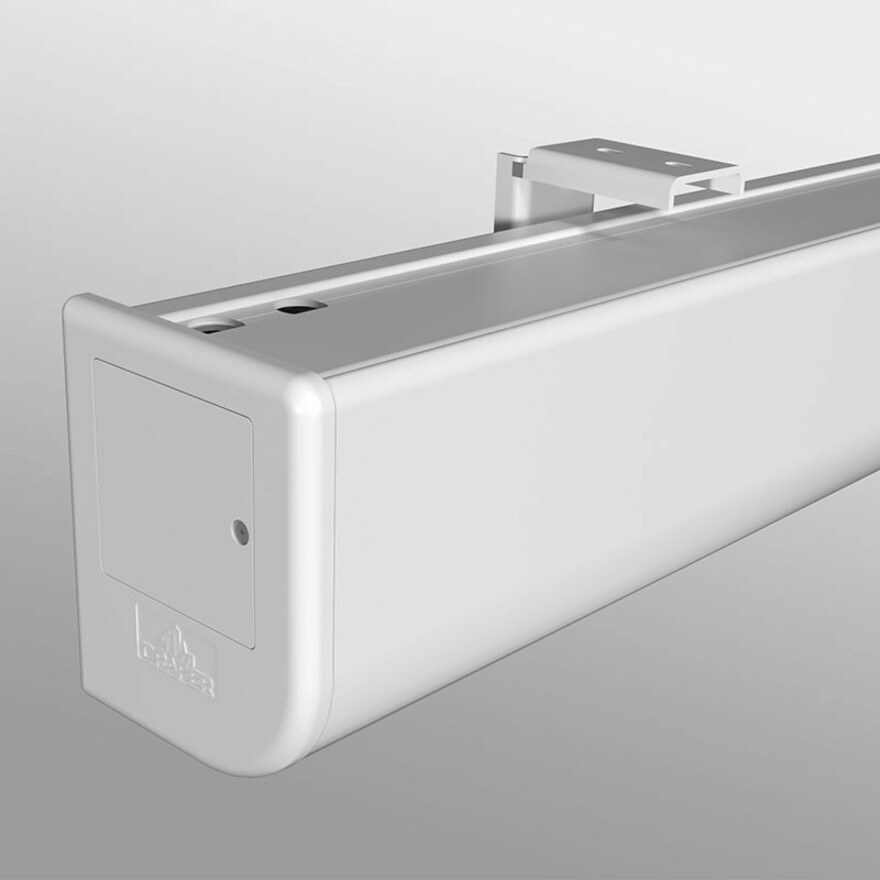

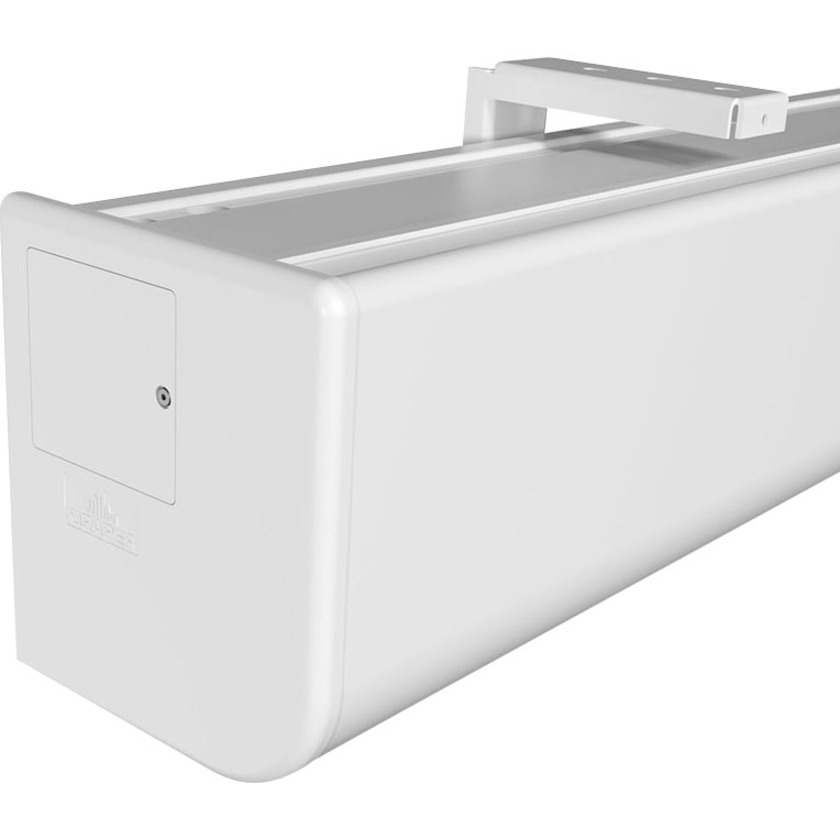

An attractive below-the-ceiling screen, the Acumen® XL E accommodates larger sizes that blend seamlessly into today's elegant interiors. The smooth, curved aluminum housing and white powder coat finish complement any room design. Floating mounting brackets and removable fascia simplify installation. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. A wide variety of motor and control options (including quiet and low voltage) are available.

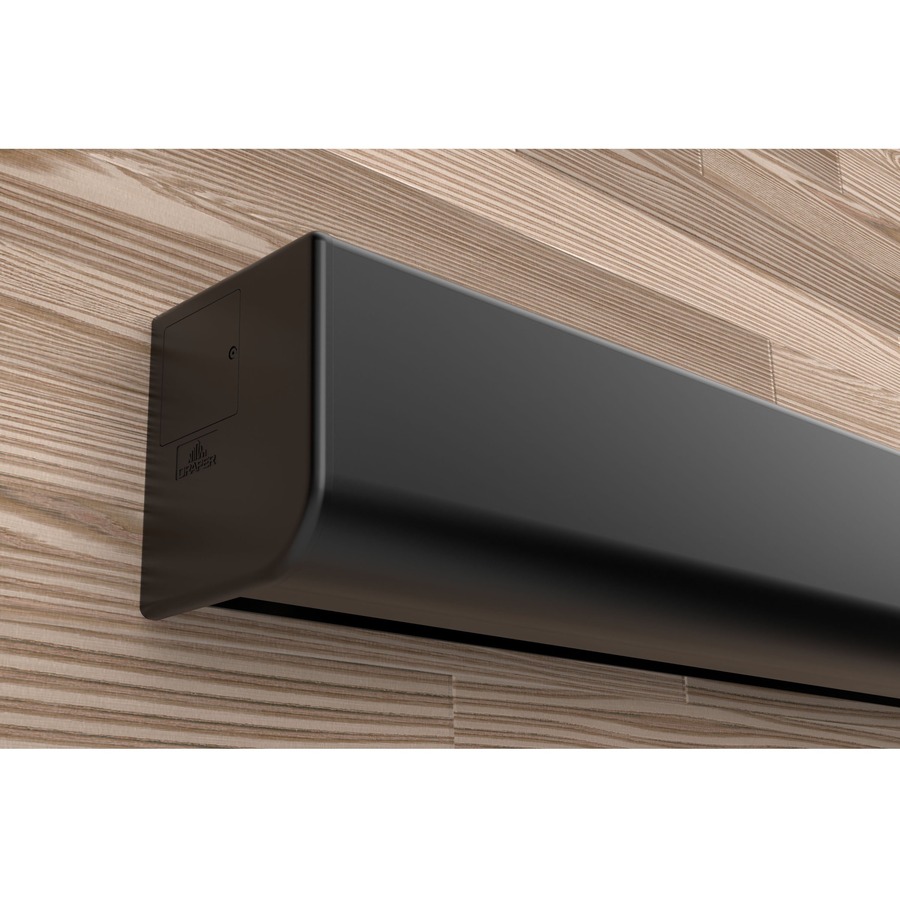

  • Case dimensions: 9-1/4" h x 8-1/8" d 1(235 mm x 206 mm). Extruded aluminum housing with white powder coated or optional black finish.
  • Maximum image width up to 18' (5.5 m) wide.
  • Available with OptiView line of viewing surfaces.
  • HDTV and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for special sizes.
  • Black drop standard, depending on screen size. Extra drop above image area available upon request.
  • Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.
  • Floating mounting brackets included.
  • Seven-year warranty. *USA and Canada only.
SPECIFICATIONS
General Information
ManufacturerDraper, Inc
Manufacturer Part Number152103
Manufacturer Website Addresshttp://www.draperinc.com
Brand NameDraper
Product LineAcumen XL E
Product NameAcumen XL E, 198" , 16:10, Matt White XT1000E, 110 V
Product TypeProjection Screen
Technical Information
Diagonal Image Size198"
Screen Height110"
Screen Width172"
Screen FabricMatt White XT1000E
Aspect Ratio16:10
Screen Folding MechanismElectric
Physical Characteristics
Mount TypeCeiling Mount
Product ColorPowder Coated White
Warranty
Limited Warranty7 Year
