RDL- DS-SP1A

2 Watt Decora-Style 8 Ohm Loudspeaker-Stainless Steel

Manufacturer: RDL
Category: Speakers
SKU: DS-SP1A
Availability: Call
MSRP: $140.68
PRODUCT HIGHLIGHTS

The D SERIES-SP1A is a compact 8 ohm loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.

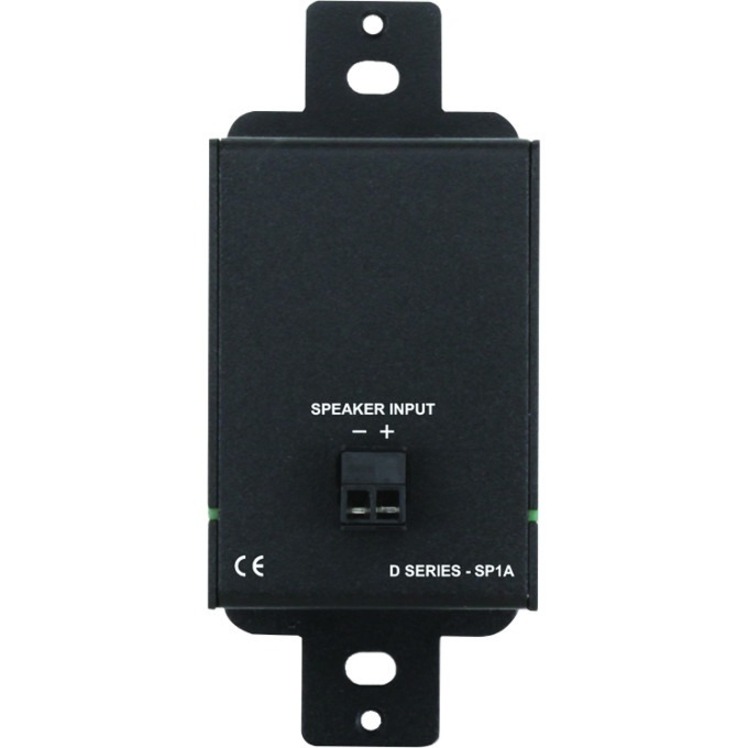

The input is connected through a 2-position detachable terminal block on the rear panel. The D SERIES-SP1A operates with a continuous audio input up to 2 watts, making it suited to be driven by speech or music content from amplifiers with a maximum rated power of up to 10 W. Models are available with grills in black (DB-SP1A), white (D-SP1A), gray (DG-SP1A) or stainless steel (DS-SP1A).

  • RMS Output Power: 2 W
  • PMPO Output Power: 10 W
  • Woofer Driver Material: Aluminum
  • Minimum Frequency Response: 150 Hz
  • Maximum Frequency Response: 20 kHz
  • Sensitivity: 78 dB
  • Impedance: 8 Ohm
  • Product Color: Stainless Steel
  • Form Factor: Surface Mount
  • Form Factor: Desktop
  • Form Factor: Wall Mountable
  • Height: 4.1"
  • Width: 1.7"
  • Depth: 2.07"
  • Weight (Approximate): 6.40 oz
  • Environmentally Friendly: Yes
  • Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
SPECIFICATIONS
General Information
ManufacturerRadio Design Labs, Inc
Manufacturer Part NumberDS-SP1A
Manufacturer Website Addresshttp://www.rdlnet.com
Brand NameRDL
Product ModelDS-SP1A
Product Name2 Watt Decora-Style 8 Ohm Loudspeaker
Product TypeSpeaker
Technical Information
RMS Output Power2 W
PMPO Output Power10 W
Woofer Driver MaterialAluminum
Minimum Frequency Response150 Hz
Maximum Frequency Response20 kHz
Impedance8 Ohm
Sensitivity78 dB
Physical Characteristics
Product ColorStainless Steel
Form FactorSurface Mount
Desktop
Wall Mountable
Miscellaneous
Environmentally FriendlyYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
