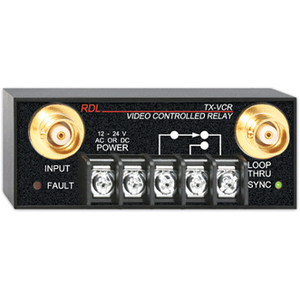

The TX-VCR is the ideal choice in installations where a control signal is needed based on the absence or presence of valid video signals. The unique power supply input allows the TX-VCR to be powered from a wide variety of existing ac or dc power sources.
The TX-VCR has one video INPUT and a LOOP OUT video jack. The detection circuit bridges a 1V video line. The TX-VCR may be inserted in a video line with the loop-through video output feeding a terminated load. It may alternatively be installed at the end of a video line by installing a 75 Ω terminator to the LOOP OUT video jack. The terminator is supplied with the TX-VCR.
